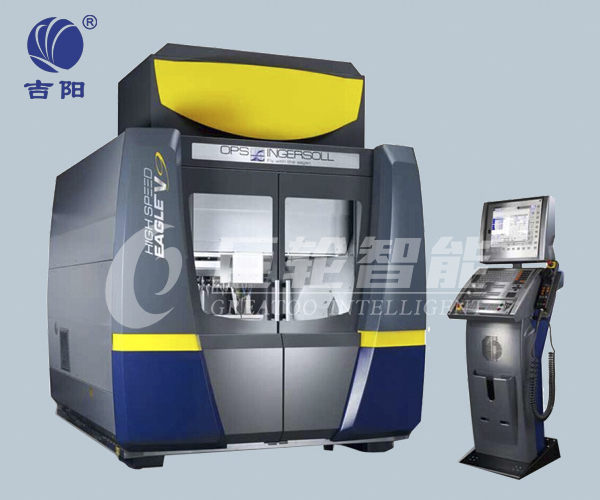

High speed Eagle V9创新亮点：结构紧凑的同时保证较大的加工空间，3轴5轴转换自主-专业利用技术（SB SE），
可用于大型的3轴自动化加工
特点：占地面积3064/2177mm，高度2850mm，各轴行程：X/Y/Z 800/600/500 mm
台面尺寸：X/Y 1000/660 mm
| 各轴行程/Stroke of each axle | X=800mm 、Y=600mm 、Z=500mm |
| 进给率/Feed rate | max 30m/min |
| 加速度/Acceleration | max 15m/s² |
| 工作台夹装台面尺寸/Table size of table | X=1000mm 、Y=660mm |
| T型槽台最大承重/T type slot platform maximum load bearing | up to 2000kg |
| 工作台/Workbench | T型槽台可装载第四/第五轴上方/Type T tank can be loaded on top of fourth / Fifth |
| T型槽/T type groove | 4x18H12 |
| 主轴鼻端到工作台距离最小/最大/Spindle nose to the operating table from the minimum / maximum | 70/570mm |
| 工件尺寸 三轴加工X/Y/Z /Workpiece size three axis machining X/Y/Z | 800/600/500mm(max 2000kg) |
| 工件尺寸 五轴加工 /Workpiece size five axis machining | Ø600mm 、H=550mm(max 500kg) |
| 载入电源功率 /Load power | 32KVA |
| 高频主轴（可选） /High frequency spindle (optional) | HSK E40：1-42000rpm HSK E50：1-36000rpm HSK A63：1-18000/26000rpm |
| 主轴功率/Spindle power | 15KW/17KW/25KW |
| 刀库（可选） /Tool magazine (optional) | 88positions(HSK E40) 72positions(HSK E50) 48positions(HSK A63) 选配：外置刀库，适合各主轴，最多175工位/Optional: external cutter library, suitable for each spindle, up to 175 working positions |
| 迷你油雾润滑/Mini oil mist lubrication | 包括/Include |
| 数控系统/Numerical control system | Heidenhain iTNC 530 HSCi / TNC 640 |
| 机床尺寸/Dimension of machine tool | 3064x2177mm 、H=2850mm |
| 机床总量/Total machine tool | 11500kg |
| 选配/Matching | 摆动圆台：B轴+140度/-60度、 C轴扭矩马达 100U/min 、工件重量：250kg(或500kg) /Swing round: B axis +140 degrees /-60 and C axis torque motor 100U/min, workpiece weight: 250kg (or 500kg) |
| 更多选配/More matching | 激光对刀、自动刀具清洗站、红外线探头、三维检测功能、石墨吸尘装置、油 雾吸尘装置、混加工、ATS气溶胶干式润滑、切屑传送链、错误信息短信提示、自动化准备、海德汉软件选配项、节能功能 /Laser tool setting and tool automatic cleaning stations, infrared probe, 3D detection function, graphite dust suction device, oil mist duster, mixed processing, ATS aerosol dry lubrication, cutting chip conveyor chain, error messages, SMS tips, automatic preparation, Heidenhain software options, function |
